样式

本章节将介绍写入数据时的样式设置。

注解​

概述​

通过实体类中的注解设置单元格样式，包括字体、背景颜色、行高等。

POJO 类​

@Getter
@Setter
@EqualsAndHashCode
// 设置头部背景为红色
@HeadStyle(fillPatternType = FillPatternTypeEnum.SOLID_FOREGROUND, fillForegroundColor = 10)
// 设置头部字体大小为20
@HeadFontStyle(fontHeightInPoints = 20)
// 设置内容背景为绿色
@ContentStyle(fillPatternType = FillPatternTypeEnum.SOLID_FOREGROUND, fillForegroundColor = 17)
// 设置内容字体大小为20
@ContentFontStyle(fontHeightInPoints = 20)
public class DemoStyleData {
    // 单独设置某列的头部和内容样式
    @HeadStyle(fillPatternType = FillPatternTypeEnum.SOLID_FOREGROUND, fillForegroundColor = 14)
    @HeadFontStyle(fontHeightInPoints = 30)
    @ContentStyle(fillPatternType = FillPatternTypeEnum.SOLID_FOREGROUND, fillForegroundColor = 40)
    @ContentFontStyle(fontHeightInPoints = 30)
    @ExcelProperty("字符串标题")
    private String string;

    @ExcelProperty("日期标题")
    private Date date;

    @ExcelProperty("数字标题")
    private Double doubleData;
}

代码示例​

@Test
public void annotationStyleWrite() {
    String fileName = "annotationStyleWrite" + System.currentTimeMillis() + ".xlsx";

    FastExcel.write(fileName, DemoStyleData.class)
        .sheet()
        .doWrite(data());
}

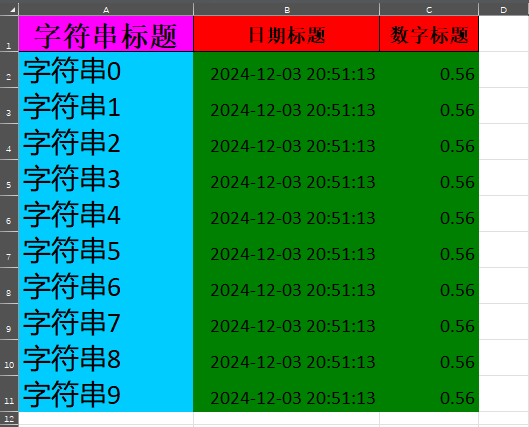

结果​


内置拦截器​

概述​

通过 HorizontalCellStyleStrategy 为表头和内容分别设置样式。

代码示例​

@Test
public void handlerStyleWrite() {
    String fileName = "handlerStyleWrite" + System.currentTimeMillis() + ".xlsx";

    // 定义表头样式
    WriteCellStyle headStyle = new WriteCellStyle();
    headStyle.setFillForegroundColor(IndexedColors.RED.getIndex()); // 红色背景
    WriteFont headFont = new WriteFont();
    headFont.setFontHeightInPoints((short) 20); // 字体大小为20
    headStyle.setWriteFont(headFont);

    // 定义内容样式
    WriteCellStyle contentStyle = new WriteCellStyle();
    contentStyle.setFillForegroundColor(IndexedColors.GREEN.getIndex()); // 绿色背景
    contentStyle.setFillPatternType(FillPatternType.SOLID_FOREGROUND);
    WriteFont contentFont = new WriteFont();
    contentFont.setFontHeightInPoints((short) 20);
    contentStyle.setWriteFont(contentFont);

    // 使用策略设置样式
    HorizontalCellStyleStrategy styleStrategy =
        new HorizontalCellStyleStrategy(headStyle, contentStyle);

    FastExcel.write(fileName, DemoData.class)
        .registerWriteHandler(styleStrategy)
        .sheet("样式模板")
        .doWrite(data());
}

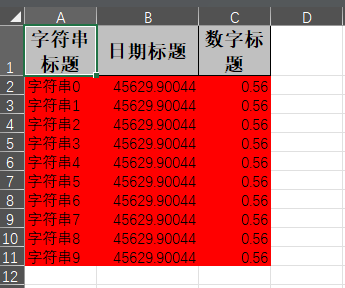

结果​


自定义拦截器​

概述​

如果已有策略无法满足需求，可以实现 CellWriteHandler 接口对样式进行完全自定义控制。

代码示例​

自定义拦截器

@Slf4j
public class CustomCellStyleWriteHandler implements CellWriteHandler {

    @Override
    public void afterCellDispose(CellWriteHandlerContext context) {
        // 仅设置内容单元格的样式
        if (BooleanUtils.isNotTrue(context.getHead())) {
            WriteCellData<?> cellData = context.getFirstCellData();
            WriteCellStyle writeCellStyle = cellData.getOrCreateStyle();

            // 设置背景颜色为黄色
            writeCellStyle.setFillForegroundColor(IndexedColors.YELLOW.getIndex());
            writeCellStyle.setFillPatternType(FillPatternType.SOLID_FOREGROUND);

            // 设置字体为蓝色
            WriteFont writeFont = new WriteFont();
            writeFont.setColor(IndexedColors.BLUE.getIndex());
            writeFont.setFontHeightInPoints((short) 14); // 字体大小为14
            writeCellStyle.setWriteFont(writeFont);

            log.info("已自定义单元格样式: 行 {}, 列 {}", context.getRowIndex(), context.getColumnIndex());
        }
    }
}

使用

@Test
public void customCellStyleWrite() {
    String fileName = "customCellStyleWrite" + System.currentTimeMillis() + ".xlsx";

    FastExcel.write(fileName, DemoData.class)
        .registerWriteHandler(new CustomCellStyleWriteHandler())
        .sheet("自定义样式")
        .doWrite(data());
}

自定义 POI 样式​

概述​

直接操作 POI 的 CellStyle，适合对样式精确控制。

代码示例​

@Test
public void poiStyleWrite() {
    String fileName = "poiStyleWrite" + System.currentTimeMillis() + ".xlsx";

    FastExcel.write(fileName, DemoData.class)
        .registerWriteHandler(new CellWriteHandler() {
            @Override
            public void afterCellDispose(CellWriteHandlerContext context) {
                if (BooleanUtils.isNotTrue(context.getHead())) {
                    Cell cell = context.getCell();
                    Workbook workbook = context.getWriteWorkbookHolder().getWorkbook();

                    // 创建并设置样式
                    CellStyle cellStyle = workbook.createCellStyle();
                    cellStyle.setFillForegroundColor(IndexedColors.LIGHT_ORANGE.getIndex());
                    cellStyle.setFillPattern(FillPatternType.SOLID_FOREGROUND);
                    cell.setCellStyle(cellStyle);
                }
            }
        })
        .sheet("POI样式")
        .doWrite(data());
}

列宽和行高​

概述​

通过注解控制列宽、行高，适用于对表格格式有特定要求的场景。

POJO类​

@Getter
@Setter
@EqualsAndHashCode
@ContentRowHeight(20)
@HeadRowHeight(30)
@ColumnWidth(25) // 默认列宽
public class WidthAndHeightData {
    @ExcelProperty("字符串标题")
    private String string;

    @ExcelProperty("日期标题")
    private Date date;

    @ColumnWidth(50) // 单独设置列宽
    @ExcelProperty("数字标题")
    private Double doubleData;
}

代码示例​

@Test
public void widthAndHeightWrite() {
    String fileName = "widthAndHeightWrite" + System.currentTimeMillis() + ".xlsx";

    FastExcel.write(fileName, WidthAndHeightData.class)
        .sheet()
        .doWrite(data());
}

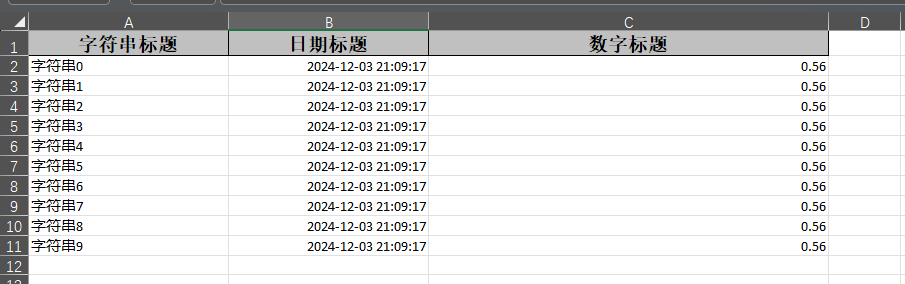

结果​
